Product Specification
| Extendable Eyepoint Adjuster | YES |
| Lens Mount | ADJUSTABLE |
| Main Body | METAL BODY |
| Optional Accessories | CAMERA |
| Shutter Speed | REAL TIME |
| Eye Piece | YES |
| Eye Guards | YES |
| Power Supply | AC |
| Material | METAL |
Product Description
Features:
- 7X-50X zoom magnification power with crisp sharp images
- Widefield of view* Sturdy all-metal pillar stand
- High resolution with great flatness and contrast, giving sharp and clear images
- Sharp stereo erect images with a wide field of view
- Crystal clear original true-co microscope images
- Large working distance Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Adjustable interpupillary distance
- Adjustable bracket, lifting range:50mm; easy to operate
- Viewing head: Binocular head Inclined at 45 degrees, Continuous magnification objective lens 6.5X-67X, interpupillary distance 54-76mm, bilateral visibility adjustable
- Eyepiece: WF10X/22mm High Eyepiece
- Effective distance: 100mm, the use of auxiliary objective lens can be extended 30mm-287mm
- Magnification:7X-50X
Specification:

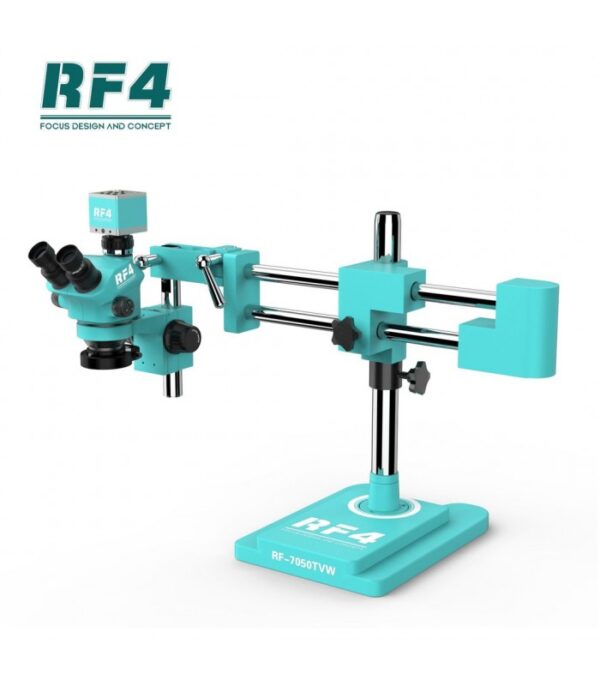

- Product Name: Industrial grade trinocular stereo microscope
- Product Model: RF 7050-TVP
- Product Size: 195*253*225mm
- Magnification: Standard 0.7-4.5X(Optional 2.1X-180X)
- Eyepiece: 0.5X CTV HD electron microscope
- Objective Len: 0.7X-50X
- Eyepiece: WF10X22 High Eyepiece
- Observation Head: Binocular observation head 45°tilt, eyepiece pupil spacing adjustment range 54-76mm; Binocular visual acuity adjustable
- Working distance: The effective distance is 100mm, and the purchase of an auxiliary objective lens can be extended to 30-287mm
- Focusing bracket: Adjustable elasticity of focusing hand-wheel, lifting range 50mm
- Base Size: Boom Stand
- LED light source: High brightness cold white light source, can be adjusted freely
- Applicable Fields: Teaching Demonstafion, PCB electronics signal mobile phone processing and repair Component Assembly, electronic component detection
Package includes:
- 1 x Microscope Head
- 1 x Dust bag
- 1 x 0.5x or 0.7x zooming lens ( choose any 1 )
- 1 x 0.5x CTV adapter
- 1 x Dust proof mirror
- 1 x Focusing arm
- 1 x 360 Boom Stand Base
- 1 x Height limiting fixed shaft
- 2 x WF10X22 Eyepiece
- 2 x Rubber eye guards
- 1 x Double-sided loading plate
- 1 x LED ring lamp
- 1 x Safety manual
